WIFI 720P IP68 Car Rearview Camera System View Angle 110 Degree

  • 1
  • 2
  • 3

Brand Name : TX

Model Number : FX505

Certification : FCC CE ROHS

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : Western Union, MoneyGram, L/C, T/T

Supply Ability : 1000pcs/week

Delivery Time : 5-8 days

Packaging Details : color box

Waterproof rating : IP68

Image Sensor : 1/3"HD CMOS

Operating Frequency : 2.4GHz~2.4835GHz

TV System : PAL/NTSC

Camera Resolution : 550TV Line

View angle : 110°

Operating temperature : -20°C~+70°C

Storage temperature : -30°C~+80°C

Contact Now

WIFI 720P IP68 Car Rearview Camera System View Angle 110 Degree

WIFI Rearview Camera View Angle 110 Degree 720P Resolution 5 Inch LCD Color

Specification:

Camera

IP Class(Protection type): IP68,waterproof
Image Sensor: 1/3” HD CMOS
Operating Frequency: 2.4GHz~2.4835GHz
TV System: NTSC/PAL
Resolution: 550TV Line
Minimum Illumination: 0 Lux[IR ON]
Transmitted Power: 16+-1dBm@Maximum Power Setting
View angle: 110°
Power Supply: DC+9V~+30V(Supporting power line voltage range)
Operating temperature: -20°C~+70°C
Storage temperature: -30°C~+80°C
Size: 27*25*25mm


Monitor

LCD Size: 5 Inch Color Monitor
Operating Frequency: 2.4GHz~2.4835GHz
Transmitted Power: 16+-1dBm@Maximum Power Setting
RX Sensitivity: -90dBm@10%PER
Resolution: 800(H)x480(V)
Brightness: 500cd/m
TV System: PAL/NTSC
Power Supply: DC+9V~+30V
Operating temperature: -20°C~+70°C
Storage temperature: -30°C~+80°C
Size: 132.5x89.5x22.5mm


Features:

1. The smallest 2.4G wireless rear view integrated camera in world, volume is 27*25*25mm
2. Backup camera is designed with IP68 waterproof, Working temperature: -4°F-149°F, no need to worry driving at raining day and extreme weather.

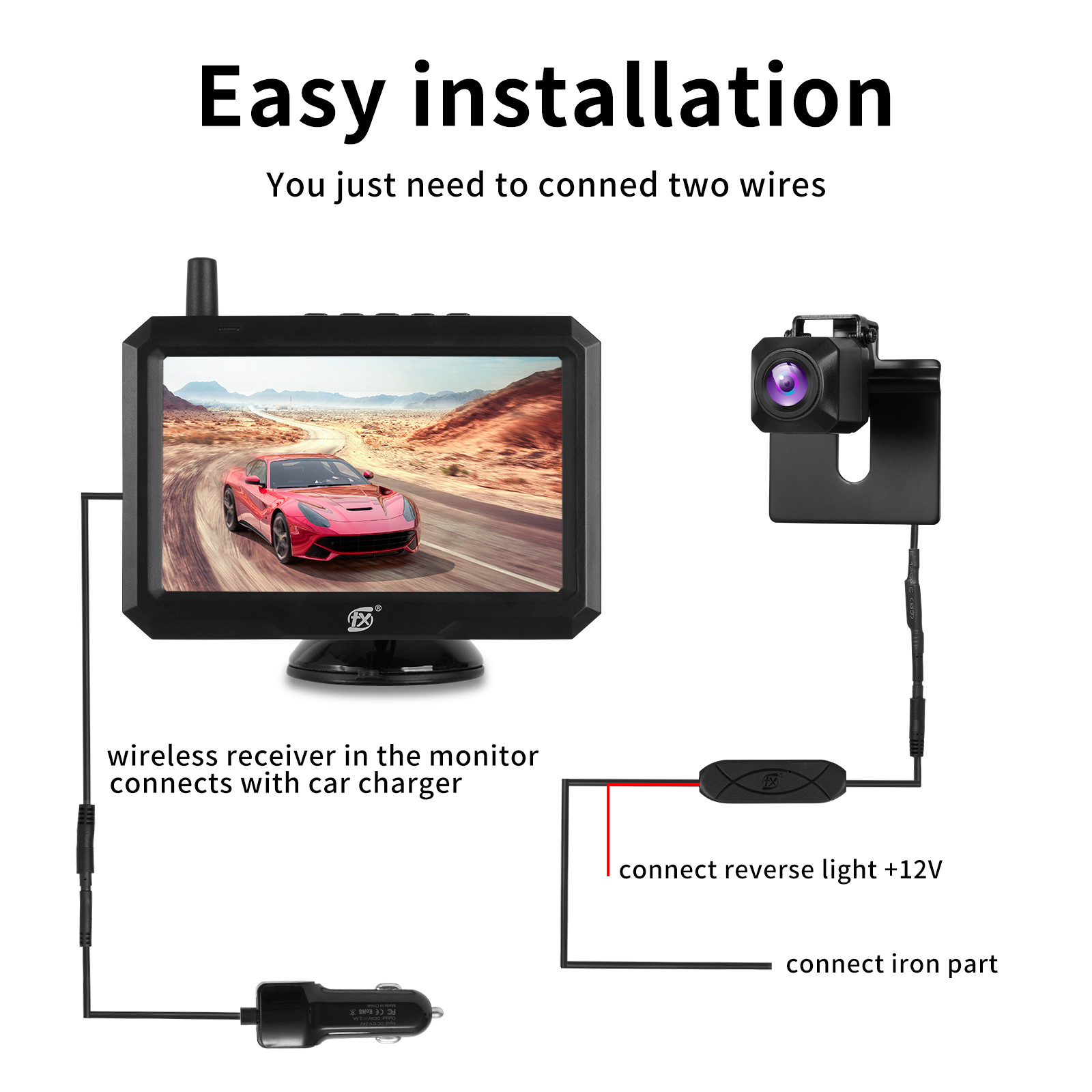

3. Easy to install: two way of bracket to install camera, more convenient
4. Camera come with good low night vision:110 degree horizontal angle. more safety to drive at darkness and daytime. Illumination can be as low as 0.1LUX.
5. 5 Inch TFT color screen, brightness: 500cd/m Resolution is 800*480
6. Power on response time is 1.5MS, latency time is 70 ms, video will be appeared quickly on monitor.
7. Two position to install monitor: located on dashboard or on windshield. Install separately, when need to connect camera, just pair the code.
8. Transmissor prow is 16DBM,RX sensitivity is -90DBM
9. Monitor has variety of display way: Mirror, normal image and up, down, left, right image flip for more safe parking.
10. FCC CE ROHS is available.

Competitive advantage:

1. Stable quality(CE,FCC,ROHS)
2. Most competitive price
3. On time delivery
4. All products must test one by one waterproof resistance and high/low temperature resistance
5. Warranty: 12 months
6. OEM,ODM welcome
WIFI 720P IP68 Car Rearview Camera System View Angle 110 DegreeWIFI 720P IP68 Car Rearview Camera System View Angle 110 Degree
